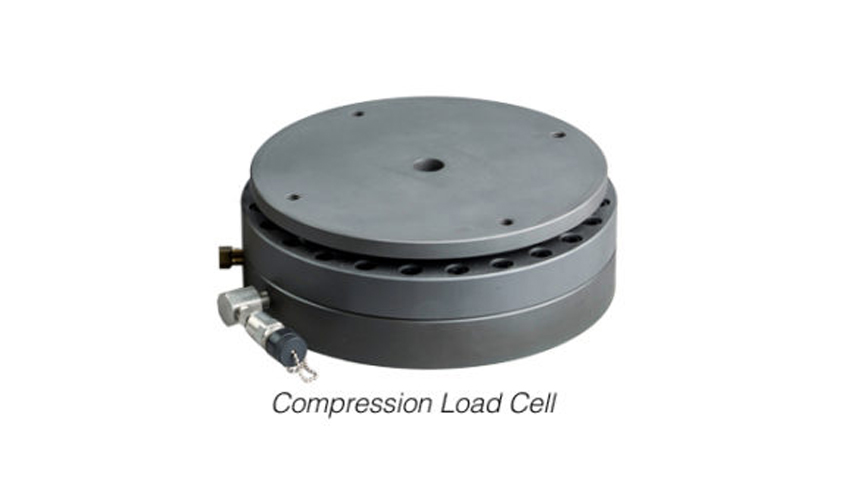

Compression load cells (often called pancake load cells) are designed to give precise readings when compressed by a bulk tank, deadline anchor or in other weight indication applications. Hydraulic compression load cells are ideally used in instances where electrical load cells may cause sparks and be potential explosion hazards. When the load cell is compressed, pressure increases in the hydraulic fluid and  the fluid is pushed through a high pressure hose to the weight indicator gauge. Each hydraulic weight indicator system comes complete with load cell, hose and gauge, and all can be custom designed to suit your application.

FEATURES

Size:6.44 sq.in./8.0 sq.in./12.0 sq.in./16.1 sq.in./25 sq.in./36.767 sq.in./50 sq.in./
Capacity:5000lbs/7000lbs/10000lbs/30000lbs/40000lbs/60000lbs/100000lbs/
Compact design
high or low capacity
Durable design
Wide operating temperature range
Easy to replace diaphragm
Robust, accurate and virtually trouble-free
Frictionless, direct signal transmission
Nothing to plug in; no power required

ADVANTAGES

Our hydraulic load cells are built to last, with a diaphragm designed to ease friction and leaks that are common in less sophisticated hydraulic sensors. Hydraulic load cells have exceptional dependability in outdoor environments because they do not require electricity; and therefore, the harsh elements, such as water and corrosive media, cannot affect performance.
