Product Number:HZZB

Anchor type weight indicator system is designed to give accurate readings of hook load and weight on bit.  The system is designed to work with all major deadline anchors using a tension or compression loadcell.

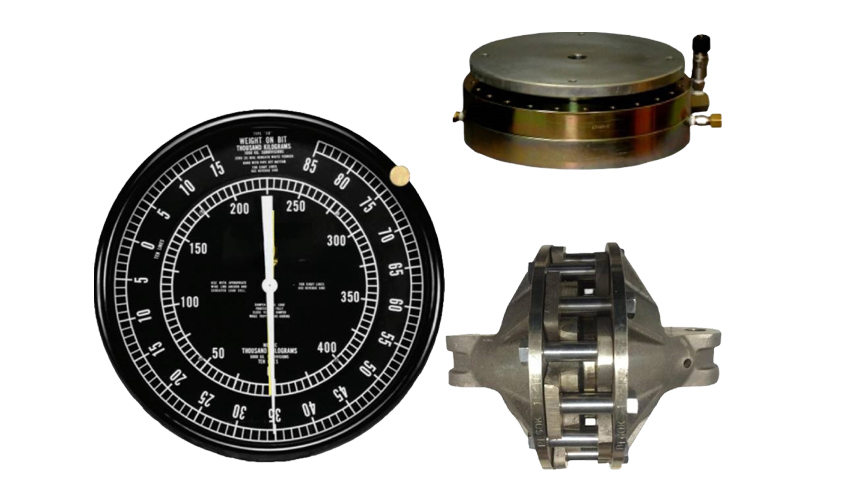

The weight indication system includes a 12” or 16” indicator, dial set, hose, and loadcell.  The system is available in box mount or panel mount styles.  Metric equivalents in Kgs and DaN.

FEATURES

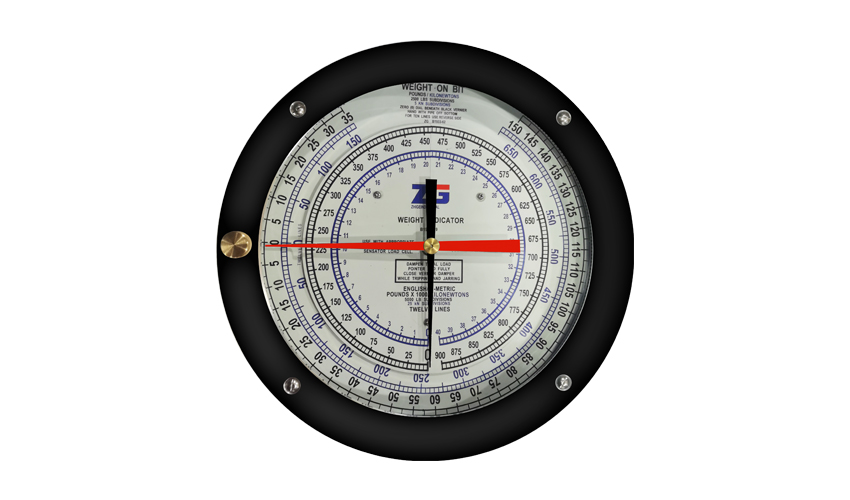

12” or 16” indicator
Hose
Loadcell
Box or panel mounts available
Metric equivalents in Kgs and DaN
Range: 30000/40000/50000/75000/100000/125000/150000/200000 / LBS is optional
Number of rope: 4/6/8/10/12/16 Rope Optional

ADVANTAGES

Large dial for clear reading of values from a distance
Dial and logo can be customized according to customer requirements

ORDERING SPECIFICATIONS

Single Line Load
Number of Lines Strung
Type of Deadline Anchor
Size of Wireline
Length of Hose
