Product Number:EJSQ

Pump Stroke Counters

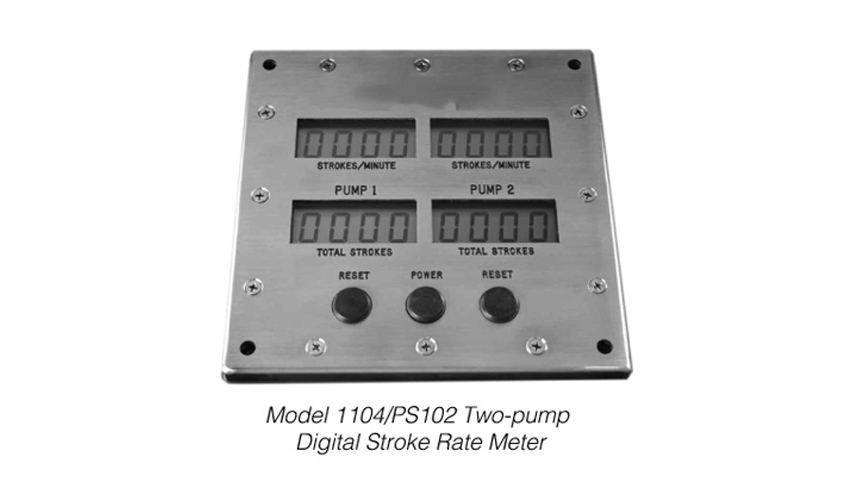

The Two-pump Digital Stroke Rate Meter monitors and displays the Rate and Total Strokes of up to two individual pumps simultaneously. The unit continually displays, on large easy to read, low power LCD displays, RPM, TOTAL ACCUMULATED STROKES (0-9999 total strokes) and STROKE RATE (8-350 strokes per minute) for each pump. The unit is internally powered by a battery source having an operational life of 3 years.

The unit requires no calibration. It has a unique low-low voltage shutdown, preventing damage to the LCD displays due to extremely low operating voltages. The enclosure is waterproof, IP-66 rated and is of all stainless-steel construction. All labels are etched permanently into the enclosure. The entire package is designed to operate reliably in the harsh environment of high vibration, moisture and constant usage of both land and offshore drilling operations.

FEATURES

INTRINSICALLY SAFE DESIGN Safe operation in Class I, Division 1, Group A,B,C and D
TRUE TWO PUMP OPERATION Always monitors both pumps
SELF POWERED FOR 3 YEARS No external power required
LOW VOLTAGE SHUTDOWN Eliminates LCD failures due to low battery voltage
STAINLESS-STEEL CASE Rugged IP-66 (NEMA 4X) construction

ADVANTAGES

DIMENSIONS: 8X8X2.5in (HWD), (20,3×20,3×6,3 cm)
WEIGHT: 4.75 Lbs (2,15kg)
POWER: 3-year, internal battery
TEMPERATURE: -40°F to +180°F, (-40°F to +82°C)
RANGE: 8 to 350 Strokes Per Minute, 0 – 9999 Total Strokes
