HLYB1511

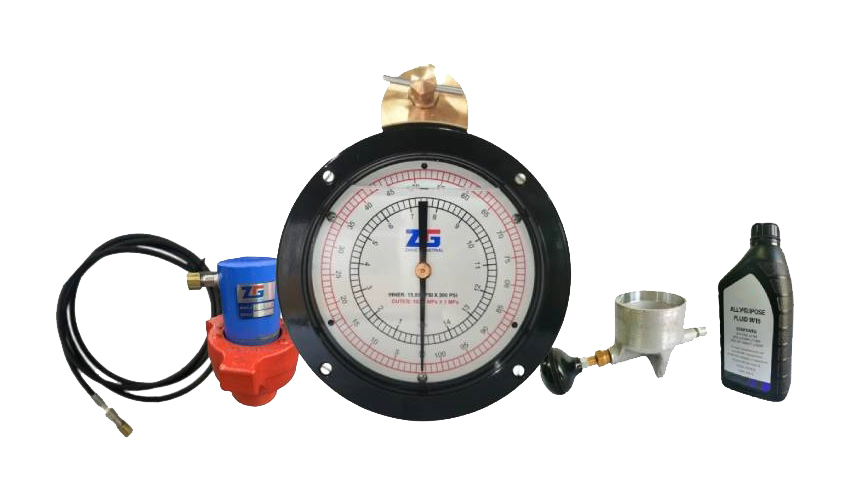

This system uses a standpipe pressure sensor as the pressure source and conducts pressure transmission through high-pressure rubber pipes, which can achieve close observation of pressure values and avoid losses and accidents caused by long-distance errors. It can also implement data collection and recording with the drilling multi-parameter instrument according to user requirements. The system can quickly and accurately detect the operation of the mud pump and help detect faults in drilling tools or drill bit nozzles. Suitable for supporting oil drilling rigs, cementing trucks, fracturing trucks and other equipment.

FEATURES

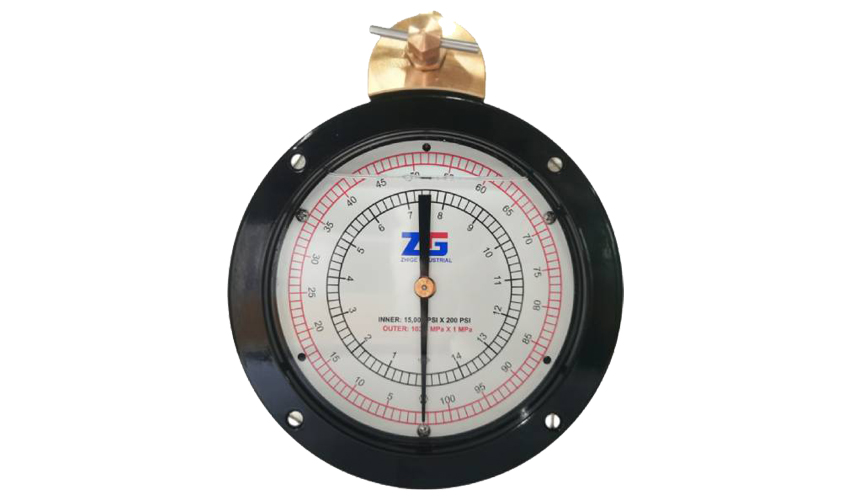

? 6-inch dial with colorful custom logo
? Pressure range includes: 0-7MPa, 0-14MPa, 0-21MPa, 0-35MPa, 0-42MPa, 0-60MPa, 0-80MPa, 0-100MPa
? Available in box or panel mount styles
? Available in dual scale and metric equivalents in kg/cm2, MPa, KPa and Bar
? Equipped with diaphragm protector
? Standard 2" Fig. 1502 Hammer Union or 2" Fig. 2202 for H2S applications
? Operating temperature range: -45C~ +60C
? Accuracy level: ±1%
?The standard length of high-pressure rubber pipe is 15 meters, and the length of the rubber pipe can also be selected according to user needs.
?1:1 riser pressure sensor with maximum working pressure up to 100MP

ADVANTAGES

? Easily visible 6″ dial face allows clear viewing from long distances
? 360° dial calibration for maximum pointer movement; shows the smallest pressure changes
? Easily mounted in various locations: driller’s console, weight indicator box, on the mud pump, or stand alone
? Fluid filled indicator reduces shock, vibration, and corrosion
? Adjustable damper allows for smooth pointer movement under intense situations

ORDERING SPECIFICATIONS

? Application
? Capacity of Indicator
? Length of Hose
? Type of Sensor
? Style of Indicator
